OPEN TOP TANK RENTALS

WHAT IS AN OPEN-TOP MUD TANK?

An open-top mud tank, also called a cuttings tank, shaker tank, or solids control tank, is used to hold and circulate drilling fluids that clean, cool, and stabilize the well during operations. Earlier versions were simple pits dug into the ground, once known as “mud pits.”

Panther Fluids provides engineered steel tanks built for drilling rigs and advanced solids control systems. Each tank delivers consistent fluid storage and supports the continuous reuse of drilling mud throughout the drilling phase.

Key features include:

Open-top access for easy monitoring and maintenance
Heavy-duty steel construction for durability in harsh conditions
Options for internal agitation and fluid circulation
Slope, flat, or round-bottom designs for specialized solids handling
Cleanout and transfer connections for quick turnaround between jobs

MUD TANK OPTIONS AVAILABLE

Panther Fluids offers three open-top tank designs to support efficient solids control and fluid recovery across drilling operations. Each design helps manage cuttings and fluids from drying shakers, centrifuges, and other equipment on drilling rigs.

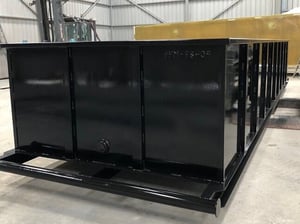

Flat Bottom Tanks

Our flat-bottom tanks hold the greatest volume and can handle liquids or solids during the solids control process. Depending on the project, this option may reduce the number of tanks required on site. The stable, flat-base design also allows easy access for cleanout and long-term site use.

High-capacity storage for liquids or cuttings
Suitable for large or extended drilling projects
Stable design ideal for long-term operations
Easy cleanout and access for vacuum truck removal
Reduces the total number of tanks needed on location

flat-bottom-tank-648

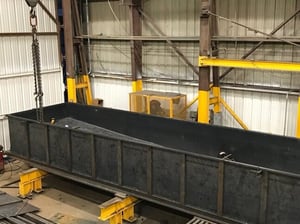

Slope Bottom Tanks

Our slope-bottom tanks are ideal for placement beneath drying or shale shakers. The sloped interior promotes gravity-based drainage, guiding mud toward the suction line for transfer to other processing equipment before being reintroduced into the active mud system. A V-bottom configuration is also available for applications requiring faster cleanout and more complete drainage.

Positioned beneath drying or shale shakers
Promotes efficient mud flow and drainage
Faster cleanout than flat-bottom designs
Reinforced steel construction for durability
Supports continuous solids control and mud recovery

slope-bottom-tank-648

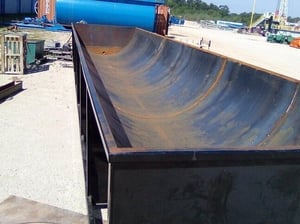

Round Bottom Tanks

Our round-bottom tanks are optimal for holding either liquids or solids during the solids control process. The smooth, curved design provides full drainage and easy removal of materials with a track hoe, making it suitable for mixing, jetting, or haul-off and disposal. Optional agitation can be included for specialized operations.

Full-drainage round-bottom design
Smooth interior simplifies mixing and cleaning
Compatible with mixing or jetting applications
Optional agitation available
Easy material transfer between tanks or for disposal

round-bottom-tank-648

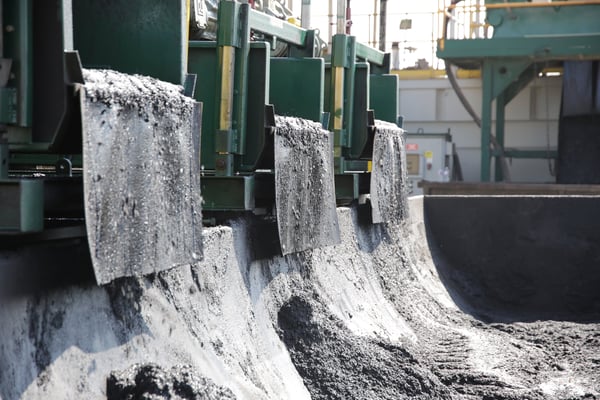

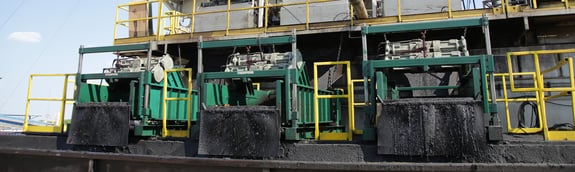

✓ Placed Beneath Shale Shakers

These tanks sit directly below the shale shakers to capture drill cuttings and return fluids. As drilling mud flows over the shaker screens, solids are separated while reusable fluid is collected in the tank for further processing.

✓ Integrated with Solids Control Equipment

Each tank supports vital solids control components such as degassers, desanders, desilters, centrifuges, and mud agitators. Together, they remove fine solids and maintain consistent mud properties throughout drilling operations.

✓ Supports Closed-Loop Systems

After separation, treated drilling fluids are pumped from the tanks back into the active mud system. This closed-loop process improves mud quality, minimizes waste, and reduces overall fluid costs on site.

✓ Used with Vacuum Trucks for Haul-Off and Disposal

Open-top tanks are commonly paired with vacuum trucks to remove drill cuttings and residual fluids efficiently. This process keeps the site organized and compliant with environmental regulations.

✓ Keep Wellsites Running Smoothly

Panther Fluids designs and maintains open-top tank systems that simplify fluids management, improve efficiency, and support safe, environmentally responsible drilling operations.
